ZG Series of in-Mold Tapping machine
ZG Series of in-Mold Tapping machine

·  Suitable for punch stroke of 50-500mm.

·  Tapping sizes of metric M2-M12 or the corresponding UNC/UNF/BSW threads.

·  The tapping direction has wide generality with up-down or bottom-top moving.

·  Quick position installation with dowel pin.

·  Replace screw tap by dismounting collet alone.

·  The minimum center distance of tapping holes can be 18mm.

·  Can be customized as special request.


Down
Results Show
Parameter Specification

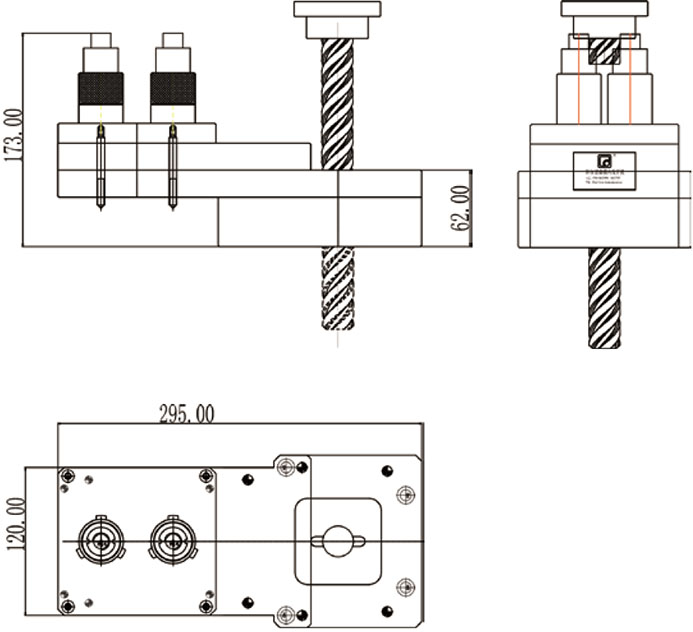

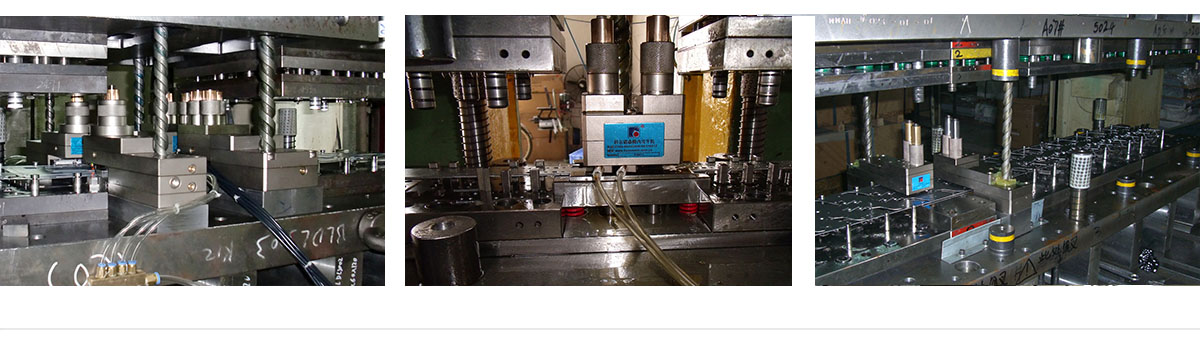

Install the renderings

zg.jpgConfigurations

· Screwtap detector.

· Mutifunction secrity detector for tooling.

· Bottom dead centre detector.

· Positioning system for product.

· Thread detector system.

· Screwtap cooling system.




Technical parameter

Model

1ZG

2ZG

3ZG4ZG5ZG6ZG7ZG8ZG9ZG10ZG
Punch Stroke50-500mm
Center distanceAccording to drawing of installation scheme
Tapping SizeMetric M2 -M12 or corresponding inch UNC/UNF/BSW threads
Qty of tapping hole1
2345678910
Installation typeSuspended installation with quick dowel positioning
RemarksCustomized



Overall dimension






How to order

DZX-1ZG-T

DZX-2ZG-T-W

T:means punch stroke

W:means ceter distance
