V Series in-Mold Tapping machine
V Series in-Mold Tapping machine

·  Suitable for variable punch stroke.

·  Tapping sizes of metric M0.6-M45 or the correspondingUNC/UNF/BSW threads.

·  The tapping direction has wide generality with up-down or bottom-top moving.

·  Quick push-in installation with complete machine or split type position installation.

·  Rapid collet replacement for screwtap by pressing clips of collet directly.

·  The minimum pitch is 13mm.

·  Can be customized as special request.

Down
Results Show
Parameter Specification

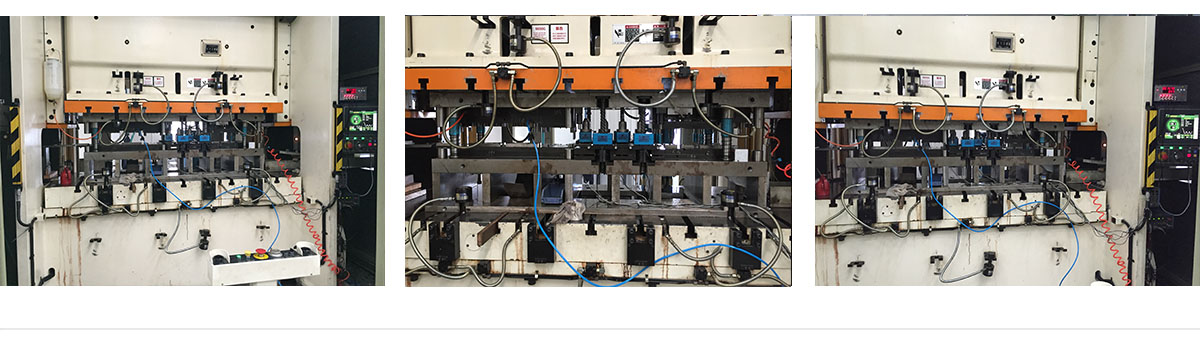

Install the renderings

v.jpgConfigurations

· Screwtap detector.

· Mutifunction secrity detector for tooling.

· Bottom dead centre detector.

· Positioning system for product.

· Thread detector system.

· Screwtap cooling system.




Technical parameter

Model

1V

2V

3V4V5V6V7V8V9V10V
Punch Strokevariable
Center distanceAccording to drawing of installation scheme
Tapping SizeMetric M0.6 -M45 or corresponding inch UNC/UNF/BSW threads
Qty of tapping hole1
2345678910
Installation typeQuick push-in installation with complete machine or split type position installation
RemarksCustomized

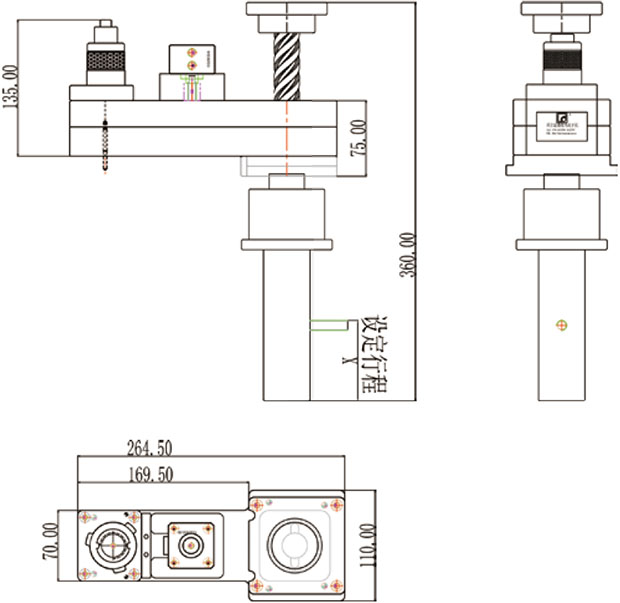

Overall dimension






How to order

DZX-1V-T

DZX-2V-T-W

T:means punch stroke

W:means ceter distance
