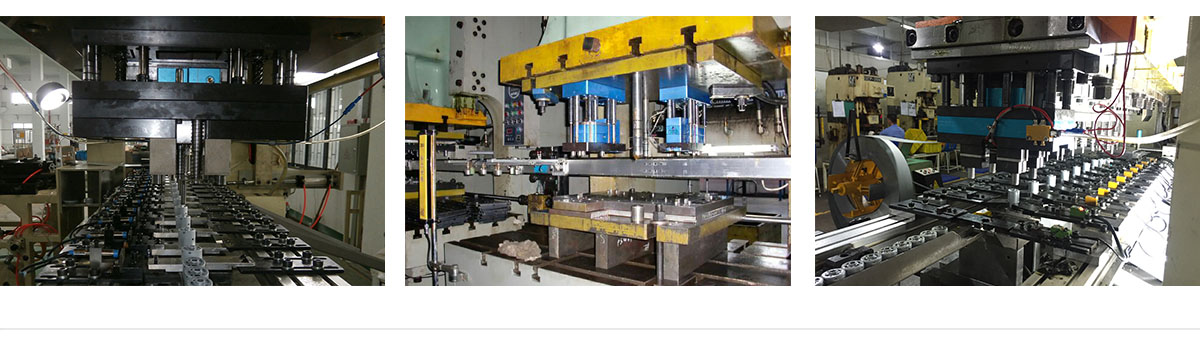

Install the renderings
Configurations
· Screwtap detector.
· Mutifunction secrity detector for tooling.
· Bottom dead centre detector.
· Positioning system for product.
· Thread detector system.
· Screwtap cooling system.
Technical parameter
| Model | 6JS1 | 6JS2 | 6JS3 | 6JS4 | 6JS5 | 6JS6 | 6JS7 | 6JS8 | 6JS9 | 6JS10 |
| Punch Stroke | variable | |||||||||
| Feeding mode | Single arm ,2D or 3D robot material feeder | |||||||||
| Center distance | — | According to drawing of installation scheme | ||||||||
| Tapping Size | Metric M1 -M12 or corresponding inch UNC/UNF/BSW threads | |||||||||
| Qty of tapping hole | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Installation type | Suspended positioning installation with overall machine | |||||||||
| Remarks | Customized | |||||||||

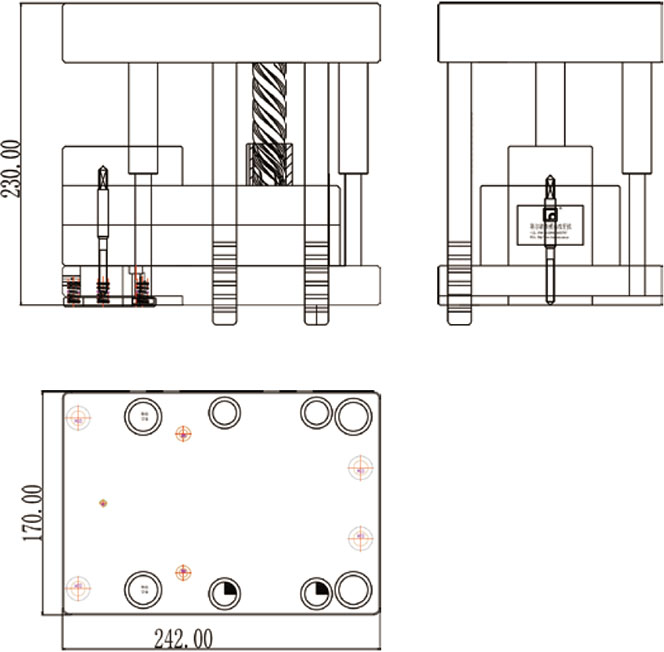

Overall dimension
How to order
DZX-6JS1-T
DZX-6JS2-T-W
T：means punch stroke
W：means ceter distance
